A relay kit our part number ccfkrl will include everything you need to properly wire up your electric cooling fans with the exception of additional wiring needed to complete all of the circuits. Whether you re in need of a complete wiring harness or looking or electrical wiring accessories go painless wiring has what you need. This drawing shows some parts found only in the gm column kits.

66 ford ranchero wiring diagram 68 impala wiring diagram free picture schematic 66 cadillac wiring diagram schematic 65 corvair wiring diagram 68 camaro wiring diagram schematic 67 gto fuse box wiring diagram 68 chevelle starter wiring diagram 65 corvair truck wiring diagram free picture

Lighthouse Fan Wiring Diagram Diagram Base Website Wiring Diagram

Painless Performance Electric Relay Dual Action Coolingfan

Electric Fan Relay Kit Painless Performance

Wiring Diagram For Electric Fan All Wiring Diagrams

Painless Ls Wiring Diagram For Dual Fans H1 Wiring Diagram

Painless Wiring Diagram 63 Nova Wiring Diagram Images

When 12v is applied to the compressor this wire will activate the a c relay on this kit.

Painles wiring fan relay diagram. Install thermostat into the head or intake manifold. E parts box containing terminals splices seals etc. Use two self tapping hex head screws to mount the supplied midi fuse holder as close as. 4 0 tools needed in addition to your regular tools you will need at least the following tools.

Go painless wiring is a proud distributor for painless performance products a company committed to giving you a truly painless wiring experience. Use a quality tool to avoid over crimping. Mount the relay under the hood in a convenient location as close to the fan as possible. In the painless performance electric fan relay kit we got from speedway motors a circuit breaker is supplied if you wanted to safely get power directly from the battery.

The first part of the installation is to install the electric fan to your radiator and remove the mechanical fan. Fan power and ground. 30103 fan relay with thermostat installation instructions 1. We opted to tap into our.

Figure 3 1 the painless wire harness kit note. The a c relay then sends a ground signal to both fan relays which will in turn activate the fan relays. Use a quality tool to avoid over crimping. Route the black wire from the relay to the thermostat and cut.

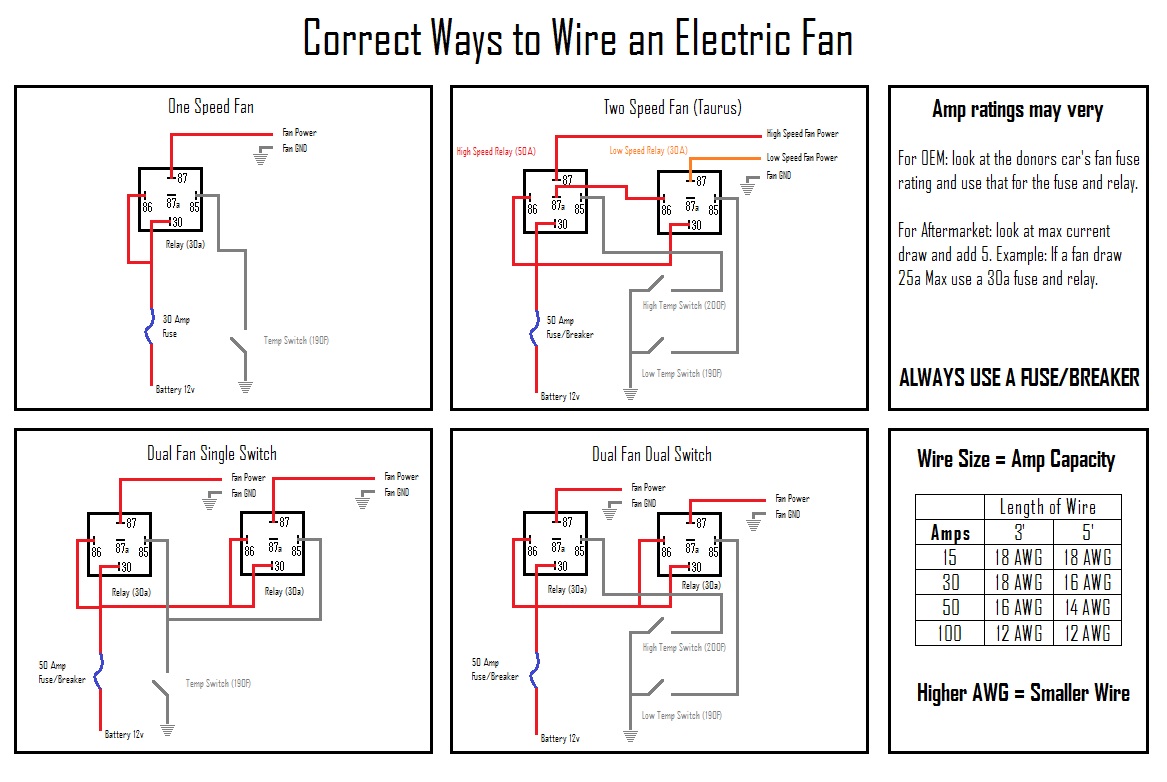

This booklet p n 90521 painless wiring manual. Suggested electric fan wiring diagrams converting a 12 volt switch into a ground switch these diagrams show the use of relays on off sensors on off switches and on off fan controllers. This booklet p n 90501 painless wiring manual. Weatherproof electric fan relay kit with thermostat protection these painless electric fan relay kits offer everything that the weatherproof electric fan relay kit does while adding thermostat protection.

Shop the store below and experience the difference of painless. Volt power wire that activates the a c compressor clutch. Two choices of thermostat switches are available 185 f on 175 off and 195 f on 185 off. Figure 3 1 the painless wire harness kit 4 0 tools needed in addition to your regular tools you will need at least the following tools.
